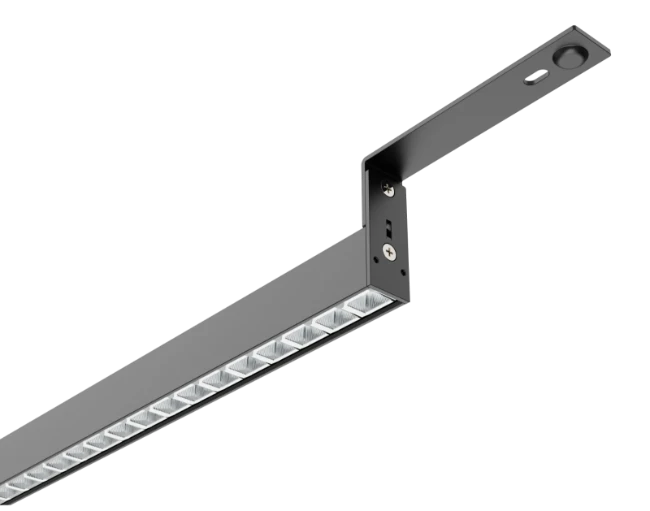

LEDSAPP-P L12-32W-BLE2-830/840-U19

Electrical data

Nominal voltage	220|240 V
Voltage type	AC/DC
Max. system power	32 W
Max. number of luminaires per miniature circuit breaker B16 (MCB)	30
Max. number of luminaires per miniature circuit breaker C16 (MCB)	48
Power factor	0.9
Surge protection	2 kV
With sensor	No
Max. inrush current	17 A
Inrush time	270
Max. number of luminaires per miniature circuit breaker C10 (MCB)	30
Max. number of luminaires per miniature circuit breaker C13 (MCB)	39
Including emergency lighting	No
Nominal voltage DC	180|280 V
Frequency	50|60 Hz

Photometrical data

Colour temperature	3000|4000 K
Equivalent to	TL 1x58W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	60°
Beam angle	60°
UGR	19

Lifespan

Lifetime (L70)	100000 h
Lifetime (L80)	70000 h
On-/Off-cycles	100000
Lifetime (L90)	50000 h

Capabilities

Dimmability	BLE2
With sensor	No

Certificates and standards

Protection class according to IEC 61140	II
Impact strength	IK03
Glow wire test	650°C
Risk group (EN 62471)	RG0

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	1%
Input current	0.14 A
Wirethrough	No

Housing colour	Black
Finishing	Black RAL 9005
Pressure valve	No
Coastal proof	No

Length	1301 mm
Width	20 mm
Height/depth	26 mm

Application temperature	25°C
Storage environment	-25|50°C
Operating temperature	-10|45°C
