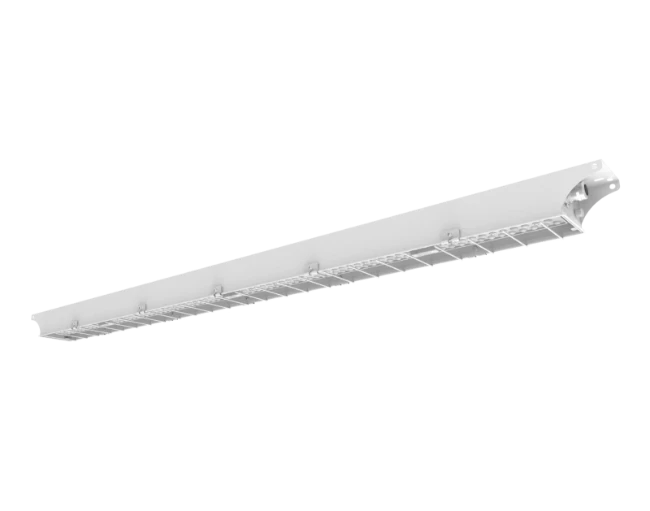

LEDLinear-Sport-P L15-90W-D4i-840

Electrical data

Nominal voltage	220|240 V
Voltage type	AC/DC
Max. system power	90 W
Max. number of luminaires per miniature circuit breaker B16 (MCB)	6
Max. number of luminaires per miniature circuit breaker C16 (MCB)	11
Power factor	0.96
Surge protection	2 kV
With sensor	No
Max. inrush current	100 A
Inrush time	220
Max. number of luminaires per miniature circuit breaker C10 (MCB)	6
Max. number of luminaires per miniature circuit breaker C13 (MCB)	8
Including emergency lighting	No
Nominal voltage DC	180|280 V
Frequency	50|60 Hz

Photometrical data

Colour temperature	4000 K
Equivalent to	TL 1x80W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	90°
Beam angle	90°

Lifespan

Lifetime (L70)	100000 h
Lifetime (L80)	70000 h
On-/Off-cycles	100000
Lifetime (L90)	50000 h

Capabilities

Dimmability	D4i
With sensor	No

Certificates and standards

Protection class according to IEC 61140	I
Impact strength	IK10
Glow wire test	650°C
Risk group (EN 62471)	RG0

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	1%
Input current	0.4 A
Wirethrough	No

Housing colour	White
Finishing	White RAL9016
Lens material	Polycarbonate
Pressure valve	No
Coastal proof	No

Length	1500 mm
Width	97 mm
Height/depth	70 mm

Application temperature	25°C
Storage environment	-30|60°C
Operating temperature	-30|50°C
