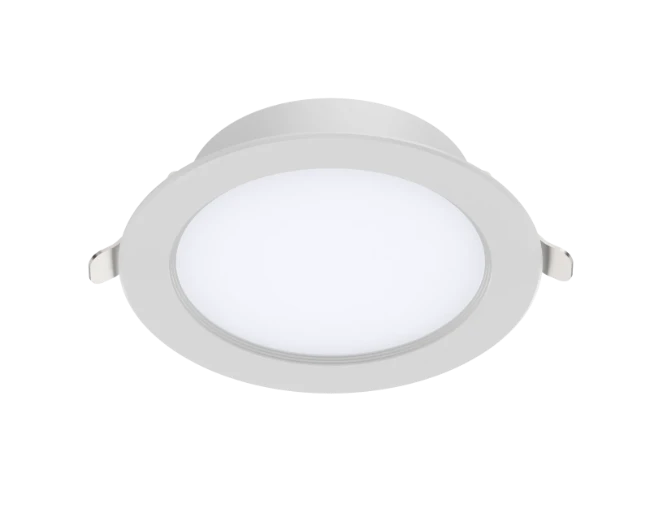

LEDDownlightCo-E2 Rd150-8/16W-830/840

Electrical data

Nominal voltage	220|240 V
Voltage type	AC
Max. system power	16 W
Power factor	0.7
Frequency	50|60 Hz
Max. number of luminaires per miniature circuit breaker B16 (MCB)	71
Max. number of luminaires per miniature circuit breaker C16 (MCB)	71
Max. inrush current	9.8 A
Inrush time	165

Photometrical data

Equivalent to	CFL 1x26W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 80
Colour temperature	3000|4000 K
Luminaire efficacy	130 lm/W

Light technical data

Beam angle	100°
Beam angle	100°
UGR	28

Lifespan

Lifetime (L70)	70000 h
Lifetime (L80)	50000 h
On-/Off-cycles	100000

Capabilities

Dimmability	On-Off

Certificates and standards

Degree of protection (IP)	IP20
Protection class according to IEC 61140	II
Impact strength	IK03
Glow wire test	650°C
Risk group (EN 62471)	RG0
IP recessed part	IP20

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	1%
Input current	0.15 A

Housing colour	White
Finishing	White RAL9003
Optical material	PC
Cover material	PS

Length	170 mm
Width	170 mm
Height/depth	35 mm
Outer diameter	170 mm

Application temperature	25°C
Storage environment	-25|50°C
Operating temperature	-10|45°C
